サブ波長構造による新機能発現
New functions using subwavelengh structure
研究の背景 Background
有機EL素子やLED素子からの高効率光取りだし、光電変換、蛍光増強などの効率向上を目的として、透明性や長期耐久性に優れた材料への微細構造の形成技術が研究されています。その様な観点において無機材料が適しており、微細構造の形成のための低コストな材料・プロセスの開発が求められています。
Nanostructures on the surfaces of transparent and highly durable materials are effective for the efficiency improvements of light emission, photoelectric conversion and fluorescence enhancement. Inorganic materials are preferable for such applications. However, there is no cost effective materials and processes for the nanostructure fabrication.
研究の目標 Outcome
光の波長レベルあるいはそれ以下の微細な周期構造は、強い光学異方性と波長依存性、共鳴現象による電磁場増強、光波の閉じ込めなど、自然界に存在しない光学特性を発現します。私たちは、フォトリソグラフィー法やナノインプリント法、さらには電圧印加インプリント法を駆使して、透明な無機材料の表面に様々な微細構造を形成し、新たな光学機能の発現を目指しています。
Fine periodic structures comparable with or smaller than a light wavelength exhibit several optical functions such as strong optical anisotropy and wavelength dependence, electromagnetic enhancement by resonance, and confinement of light waves. We are focusing on the fabrication of fine structures on transparent inorganic materials using photolithography, nanoimprint and electrical imprint processes.
研究図Research Figure

文献 / Publications
Appl. Surf. Sci., 300, 149-153 (2014). J. Appl. Phys., 114,083514-1-083514-4 (2013). J. Appl. Phys.,114,063303-1-063303-6 (2013). Appl. Phys. Express, 3,112501-1-112501-3 (2010). Adv. Func. Mater., 20, 546-553 (2010)
研究者HP

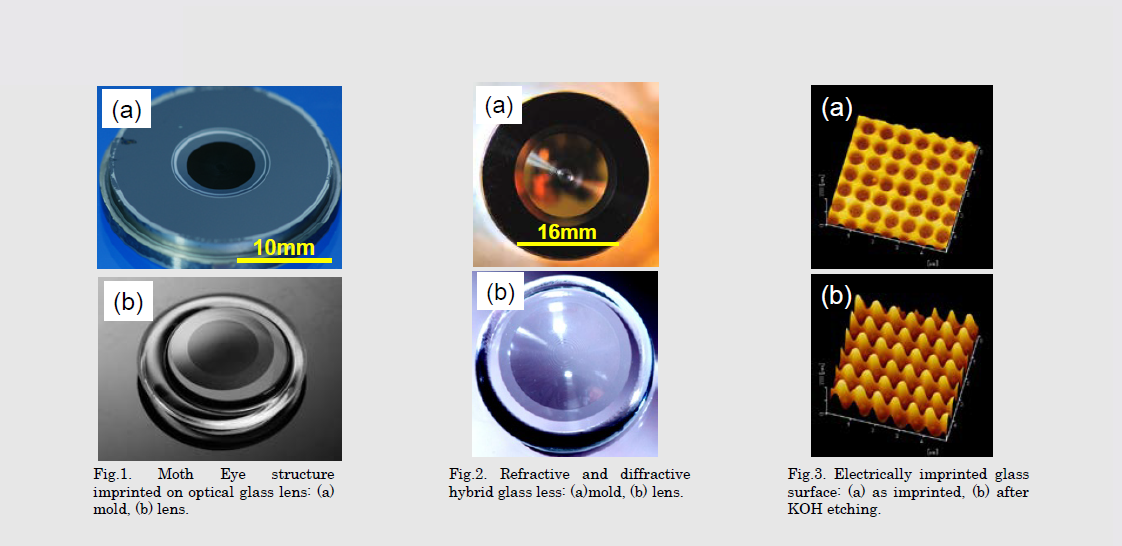

- Fig.1. Moth Eye structure imprinted on optical glass lens: (a) mold, (b) lens. Fig.2. Refractive and diffractive hybrid glass less: (a)mold, (b) lens. Fig.3. Electrically imprinted glass surface: (a) as imprinted, (b) after KOH etching.
- http://nanostructure.es.hokudai.ac.jp/
